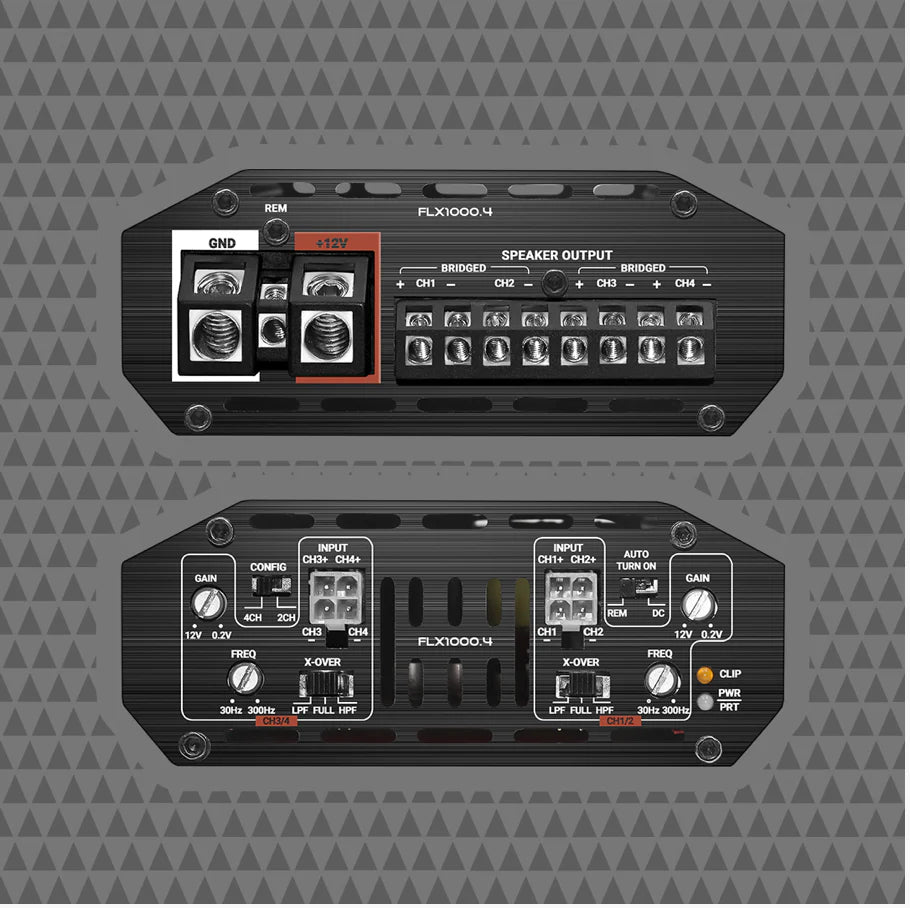

4 CHANNEL POWER AMPLIFIER

• • 4 X 150 WRMS into 4 ohms @ 12.5 Vdc
  • 4 X 168 WRMS into 4 ohms @ 14.4 Vdc
  • 4 X 220 WRMS into 2 ohms @ 12.5 Vdc
  • 4 X 254 WRMS into 2 ohms @ 14.4 Vdc

  BRIDGED MONO – 2 CHANNEL

  • 2 X 461 WRMS into 4 ohms @ 12.5 Vdc
  • 2 X 530 WRMS into 4 ohms @ 14.4 Vdc
  • Frequency response – 20-20,000 +/- 3dB THD < 0.5%
  • Operating Voltage: 8V – 16V
  • Current Draw (Music): 60 A
  • Current Draw (Max): 116 A
  • Recommended Fuse (Music): 120 A
  • Total Efficiency: 79%
  • Damping Factor: 200
  • SNR: 91dB
  • Crossover LPF/FULL/HPF: 30 TO 300Hz
  • Slope:12dB per octave
  • Gain: 0.2V – 12 Vac
  • Turn-On Configuration: REM/DC
  • THD + N (10% Rated Power): 0.1%
  • Product Dimensions (Inches / Millimeters): 6.0 x 4.9 x 2.0 in / 152 x 124 x 51 mm
